Populating Word template with the CDS image field content via Flow (Power Automate)

This is a great video which helped me on a way: https://www.youtube.com/watch?v=-1jsBllmr-w

However, in this video it takes image from OneDrive but I want to populate it from CDS image field.

  1. Add image control to a Word template. Watch video I referred above showing how to add controls step by step then come back for the image adding part.
Image control inside Word template.

2. This is my image store in CDS:

CDS image displayed on a Job form.

3. And a CDS field set up.

CDS image field setup.

4. And now Flow:

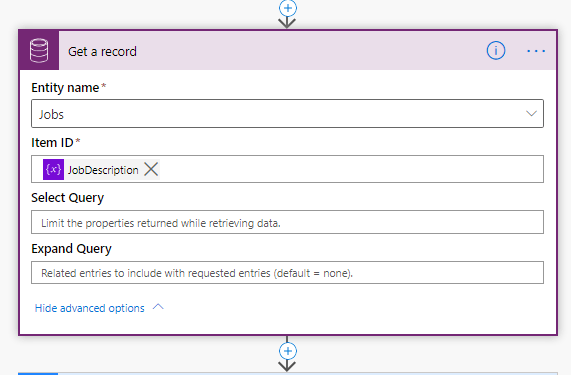

Get record CDS connector action to retrieve the record with image.
Populate Word template action with the image control placeholder and compose output content.

Here JobDescription and JobImage are fields of a Job entity.

5. A bit of actions outputs to see how image is stored:

Get record CDS connector action

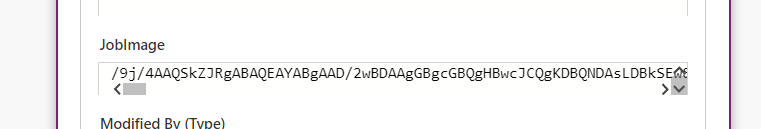

Image string in the output for get record

The format is: application/octet-stream.

According to docs(https://docs.microsoft.com/en-nz/connectors/wordonlinebusiness/#populate-a-microsoft-word-template):

Guide for using Images in the Word Online connector.

  1. Add an Image content controller in your template. Don’t delete the placeholder image. You can re-size and re-position it.
  2. Add a title property to the image content controller so that you can easily identify it in the Power Automate designer.
  3. When the image field shows up in the designer, add file contents of a JPG or PNG image as the value. The value should look like this: { “$content-type”: “image/png”, “$content”: “iVBORw0KG…i/DhQmCC” } where the content is the base64 encoded image.

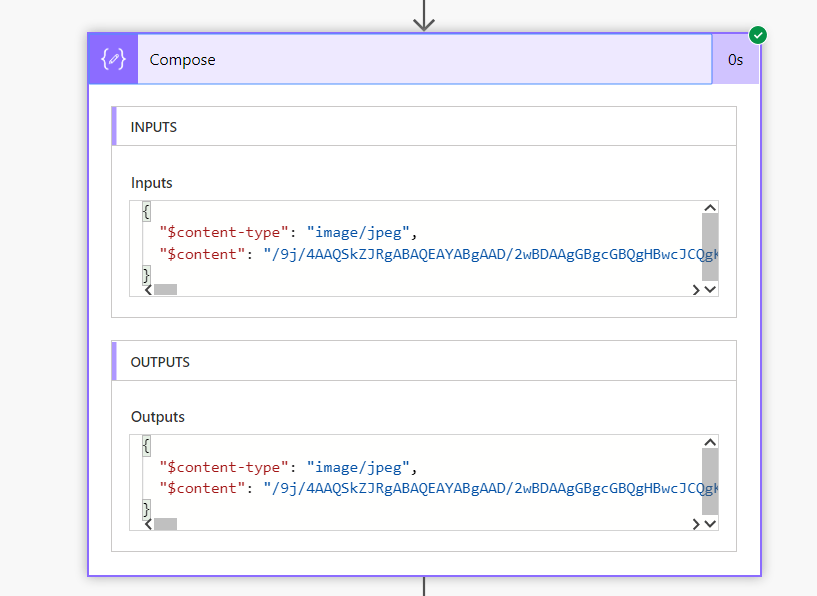

6. That’s why we use Compose to construct the required JSON:

JSON composed with the dynamic image field

7. And the result in the generated document as expected:

Image generated from CDS in the document template populated

Hope it helps!

Update: the version I described retrieves a thumbnail image. Microsoft released the CDS action since then Get file or image. https://docs.microsoft.com/en-us/connectors/commondataserviceforapps/#get-file-or-image-content?WT.mc_id=BA-MVP-5003463

This action retrieves the original image (if you choose to store one) from Azure BLOB. Then you need to apply base64(…) function and compose the JSON as per screenshot below:

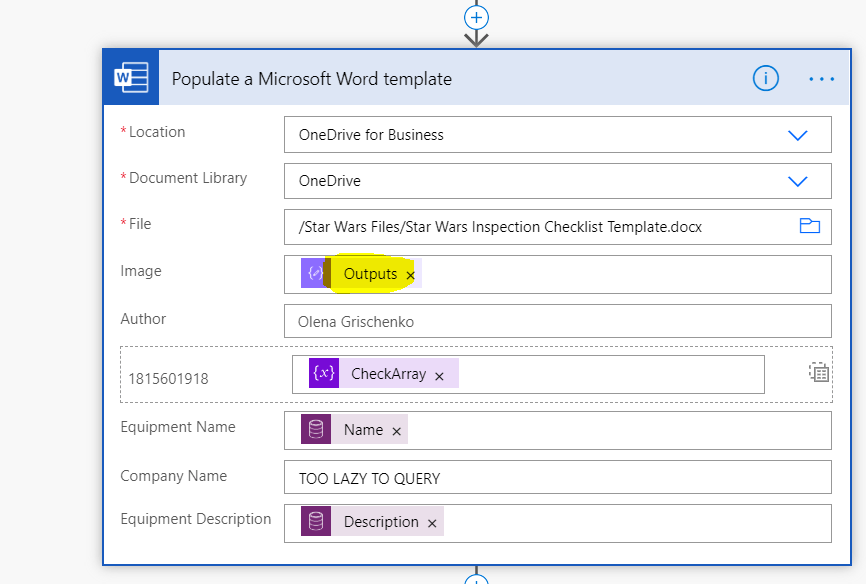

Feeding the Output of the Compose to your Populate Word template action

If you are interested in more doc generation info watch my video here:

6 thoughts on “Populating Word template with the CDS image field content via Flow (Power Automate)”

      1. I’ve updated the article. Please let me know if there are more questions. Thank you for pointing out. I created the article when Get Image… action haven’t been released yet. Now we’ve got more power.
